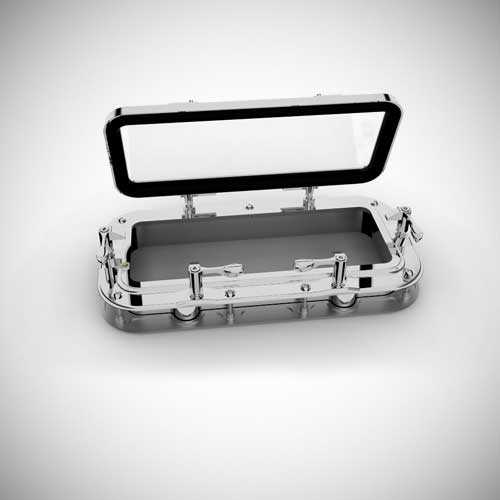

– C.E. rated
– bolt through construction
– friction or spring hinges
– 316 stainless steel casting
– EPDM gaskets
– 8mm (5/16″) & 10mm (3/8″) tempered glass
– fully adjustable hinges and dogs
– built-in drains
PORTLIGHT SIZES
*click the portlight size to download a dimension drawing
|
Product # |
Portlight Size |
|---|---|
|
310SS |
|
|
314SS |
3×14″ Rectangular Stainless Standard |
|
317SS |
|
|
410SS |
|
|
414SS |
|
|
512SS |
|
|
513SS |
|
|
520SS |
|
|
615SS |
|
|
620SS |
|
|
626SS |
|
|
715SS |
|
|
726SS |
|
|
815SS |
8×15″ Rectangular Stainless Standard |
|
818SS |
|
|
822SS |
|
|
1020SS |
10×20″ Rectangular Stainless Standard |
*if you need an extended portlight dimension drawing, please contact us
|
Product # |
Portlight Size |
|---|---|
|
310SE |
3×10″ Rectangular Stainless Extended |
|
314SE |
3×14″ Rectangular Stainless Extended |
|
317SE |
3×17″ Rectangular Stainless Extended |
|
410SE |
4×10″ Rectangular Stainless Extended |
|
414SE |
4×14″ Rectangular Stainless Extended |
|
512SE |
5×12″ Rectangular Stainless Extended |
|
513SE |
5×13″ Rectangular Stainless Extended |
|
520SE |
5×20″ Rectangular Stainless Extended |
|
615SE |
6×15″ Rectangular Stainless Extended |
|
620SE |
6×20″ Rectangular Stainless Extended |
|
626SE |
6×26″ Rectangular Stainless Extended |
|
715SE |
7×15″ Rectangular Stainless Extended |
|
726SE |
7×26″ Rectangular Stainless Extended |
|
815SE |
8×15″ Rectangular Stainless Extended |
|
818SE |
8×18″ Rectangular Stainless Extended |
|
822SE |
8×22″ Rectangular Stainless Extended |
|
1020SE |
10×20″ Rectangular Stainless Extended |
Quick Size Guide:
Do You Need a Standard or Extended Portlight?
Standard Size Portlight – cabin side thickness is between ½” to 1½”
Extended Size Portlight – cabin side thickness between 1½” to 2″
*Cabin side thickness below ½” will need to use a spacer, find out more about our teak spacers
*Cabin side thickness beyond 2″, call for a custom quote
Find our full portlight sizing guide here, call (360) 385-3315 or email nfm@newfoundmetals.com to talk with an expert.
Watch our portlight installation instruction video in our Video Library.
